GET A GRIP WITH HEINRICH
DRILL PRESS VISE
Manufacturers of Industrial Vises and Tools

Drill Press Vise
Model 20 Drill Press Vise
View Drill Press Vise service parts (.pdf file)

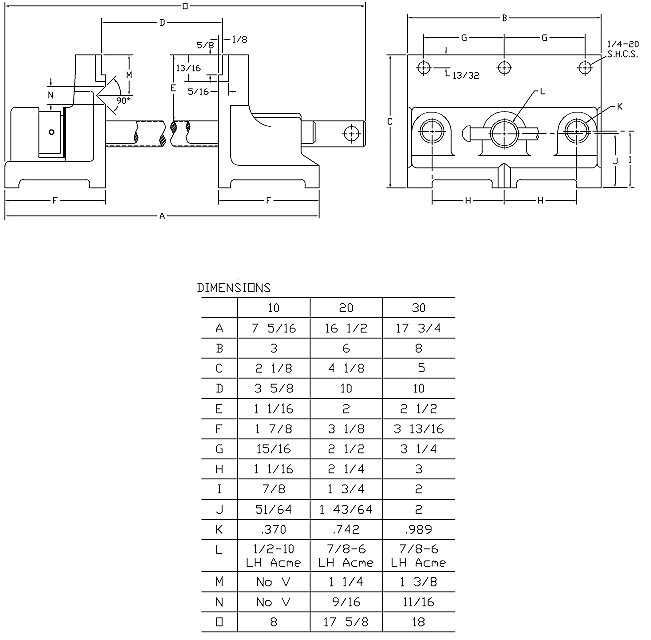

Critical Dimensions (new window)
Download AutoCAD file (23 KB)

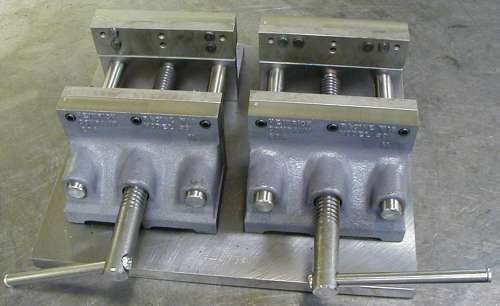

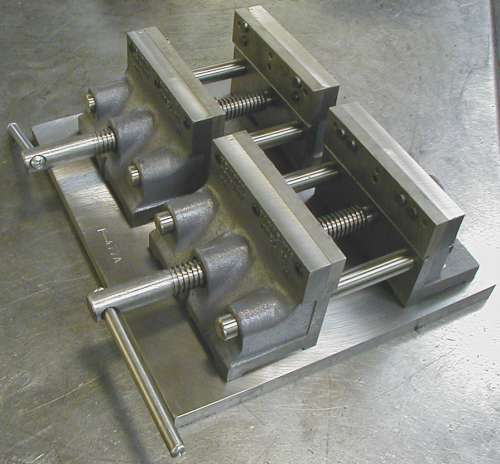

#20 Application Photos

The Heinrich screw-action vise can be used from
three sides. Work is leveled quickly on recessed
parallel jaw inserts. Ample clearance from parallels
to table, plus widely spaced jaw guide bars, permits
drilling clear through work. Jaw sides are precision
ground at right angles to jaw inserts for accurate
machining from any direction without resetting work.
Built-in V-Groove on models 20 and 30 holds round
stock firmly for side and end drilling.

PRICES and WEIGHTS:
Model
Shipping Weight
Net Price
10
5 lb.
$117.37
20
22 lb.
217.80
30
39 lb.
309.76
