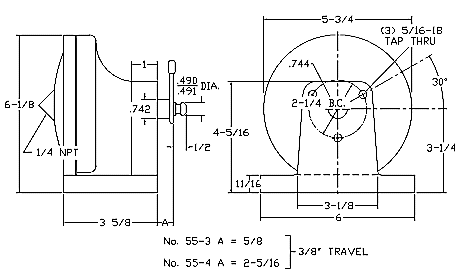

Critical Dimensions (new window)
Download AutoCAD file (17 KB)
|
Grips with a force 15X Air Pressure
(Example: 1500 lbs. at 100 psi)
Can be used on air supply lines with
pressures up to 120 psi. Pressure may
be controlled as needed by regulating
air feed with an air regulator. Operates
with No. 34-12CI Three-Way Foot Treadle
Valve, or No. 34-18 Three-Way Hand
Valve and two No. 34-14 Hoses. Piston
rod setting quickly adjustable to any point
within 2 -7/8" by means of a ratchet
operated, triple-lead thread adjusting
screw.* Mounting holes provided for
horizontal or vertical mounting.
|
