Three Models
Capacity up to 7"
Full travel of jaw opening
Piston type air cylinder. Return of
jaw under air pressure. Maximum
operating pressure, 120 lbs. psi.
Amount of pressure may be
controlled to suit the operation by
use of an air regulator. The jaw
opening may be regulated by means
of a stop rod attached to the back
of the movable jaw. Simply cut
off the rod to provide the desired
opening. The rod stops against the
vise body casting when the jaw is
in the open position.
Work leveled by soft steel recessed
parallel jaw inserts, which can be
removed to accomodate jig and
fixture components.
Hollow base for clear through
drilling. Operates with No. 45-12CI
Four-Way Hand Valve, and three
N0. 34-14 hoses.

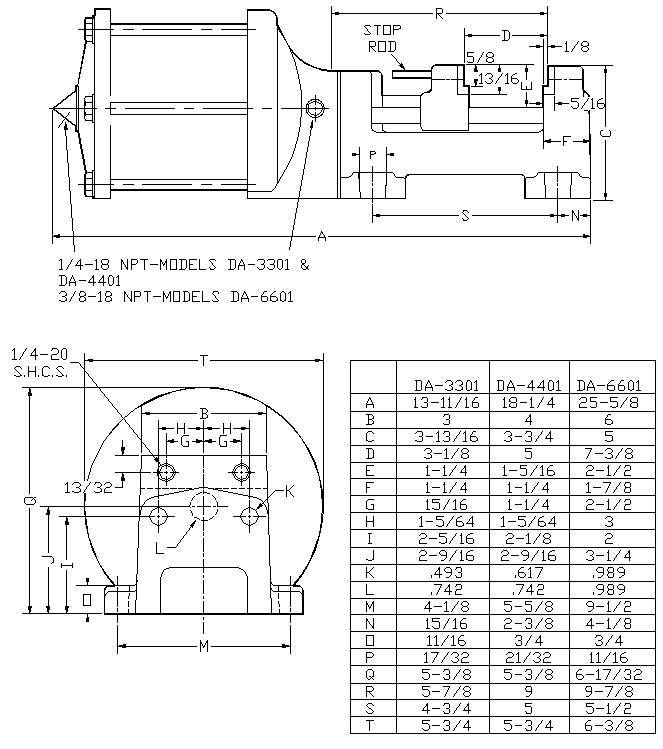

Critical Dimensions (new window)
Download AutoCAD file (19 KB)
V-Block Attachment
Hardened and ground.
Insures firm grip on round stock.
Air Accessories
|
Larger View
View Air Vises service parts (.pdf file)
Critical Dimensions (new window)
Download AutoCAD file (31 KB)
|
Prices and Weights
|
|
Model
|
Shipping
Weight
|
Power
Factor
|
Net
Price
|
|
DA-3301 Vise
Complete with No.45-12CI
Foot Treadle and three
No. 34-14 5 ft. lengths of hose
|
24 lb.
|
15x
|
$499.20
|
|
DA-3301-A Vise only
|
17 lb.
|
15x
|
359.37
|
3-VB Block
9/64"-1" rd. cap.
|
1 lb.
|
.
|
41.82
|
|
DA-4401 Vise
Complete with No. 45-12CI
Foot Treadle and three
No. 34-14 5 ft. lengths of hose
|
33 lb.
|
15x
|
554.08
|
|
DA-4401-A Vise only
|
27 lb.
|
15x
|
414.26
|
44-VB V-Block
9/64" to 1-13/16" rd. cap.
|
1 lb.
|
.
|
48.35
|
|
DA-6601 Vise
Complete with No. 45-12CI
Foot Treadle and three
No. 34-14 5 ft. lengths. of hose
|
86 lb.
|
19x
|
1015.38
|
|
DA-6601-A Vise Only
|
83 lb.
|
19x
|
875.56
|
8-VB V Block
3/8" to 1-1/16" rd. cap.
|
5 lb.
|
..
|
78.41
|
|
