Long travel, piston type air cylinder. Return of piston
rod under air pressure.
Power factor up to 15x Air Pressure -
maximum operating pressure 150 psi.
Amount of pressure may be controlled
to suit the operation by use of an air
regulator. Operates with No. 45-12CI Four- Way Foot Treadle
Valve, or No. 45-18 Four-Way Hand Valve. Three
No. 34-14 Hoses required to operate
with hand or foot valves. Mounting
holes provided for horizontal or vertical mounting.
|
View Air Vises service parts (.pdf file)

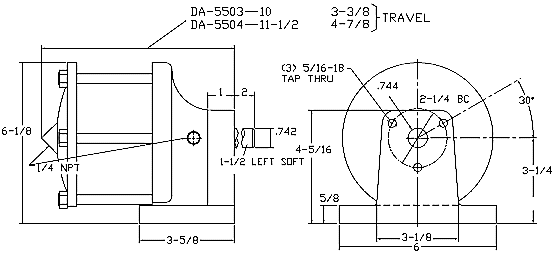

Critical Dimensions (new window)
Download AutoCAD file (16 KB)
|
